Pi-Lapse 3: Toronto Skyline

A still from a test-reel of timelapse taken at Owen Sound, in North-ish Ontario last week.
A still from a test-reel of timelapse taken at Owen Sound, in North-ish Ontario last week.

I’ve done quite a bit to improve my Raspberry Pi-based timelapser.  I have a pretty good system together now, thanks in part to recent firmware updates to the Pi which allow me to directly control the shutter speed and ISO of the camera sensor instead of relying on auto-exposure settings.  The auto-exposure is pretty unreliable from one shot to the next: the camera makes a different decision each time it snaps a picture, which leads to quite a lot of flicker.  Previously, I was dealing with this flicker by manipulating the images in post-production, but I’ve now written some code to get the camera to try to maintain a constant image brightness across a long shoot.

The code now consists of a ‘timelapser’ class, which keeps track of its current shutterspeed and ISO (SS/ISO henceforth), and the brightness of the last few images taken.  It then adjusts SS/ISO to try to get the image brightness to 100.  By keeping track of the last few images, it is a bit less susceptible to being upset by one strange image (like, say, if I put my hand over the lens for one shot, producing a black image), or more standard movement within the frame.  On the other hand, it takes a while longer to settle down to the ‘right’ SS/ISO.  So it’s currently set up with an initialization step, where it finds a good SS/ISO pretty quickly, and then transitions to actually taking pictures.  The result is very little flicker as the timelapse goes on, and a pretty constant level of image brightness when light levels gradually change: like when we watch dawn or dusk.  (If you’re interested in playing around with the code, I’ve set up a github repository here.)

As an example, this is a video that we shot over about three days on my friends Ketan and Ananya’s balcony.  They have a great view over Toronto, from the CN Tower to Honest Ed’s.

Continue reading

Advertisements

Pi-Lapse 2: Wychwood Barns Farmer’s Market

Aerial raspberry pi installation. The boxy-head is the pi(s), attached to a tripod held up by a jib arm.  A ten-port powered usb hub is duct taped to the tripod, providing lots of data storage and internet to the Pi's.
Aerial raspberry pi installation. The boxy-head is the pi(s), attached to a tripod held up by a jib arm. A ten-port powered usb hub is duct taped to the tripod, providing lots of data storage and internet to the Pi’s.

Almost immediately after my first foray with the Raspberry Pi timelapse I was contacted by Cookie Roscoe, who coordinates a weekly farmer’s market for The Stop.  The Stop is a community food center here in Toronto, providing lots of programming and emergency food access for lower-income people.  My partner, Elizabeth, worked with them for about three years, so I was super happy to try doing a time-lapse of their market.

Here’s the results!  Lots of technical stuff about what went into the video after the break!

Continue reading

An Evening at Hacklab.to

IMG_20131022_223117

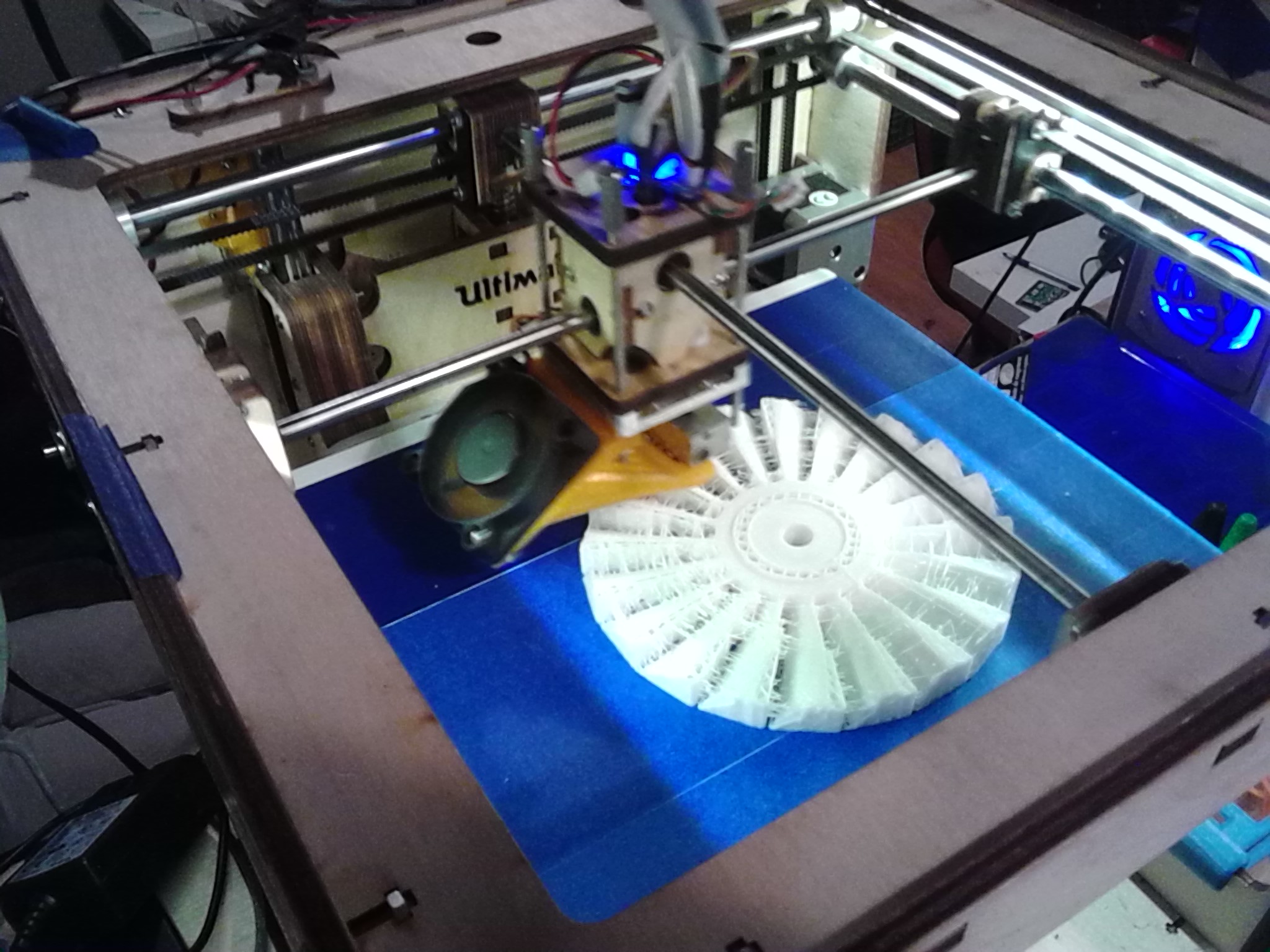

A 3D printer at HackLab printing a model of a jet engine turbine.

On Tuesday evening I finally made it to the Toronto Hacklab, after meaning to make it over for weeks!

It’s a really interesting space.  There are currently five 3D printers, lots of tools for playing with electronics, and a giant computer-driven laser in the bathroom for etching and cutting plastic or acrylic.  (Actually, I should try to make an acrylic LakeHub logo to send back to Kenya….)  According to Eric, who gave me a tour of the space, about a two thirds of the members come through to work on these sorts of projects, and a third are mainly software people who use it as a common work space.

A couple of my favorite toys that I saw on the tour were a giant LED pixel board and a ‘flip dot board’, both of which had been salvaged from the Toronto Transit Commission, which runs all the buses and subways.  Members of the Hacklab built electronic interfaces to both of the devices: the LED board is run by an arduion and can be sent messages to display, and otherwise acts a clock.  The flip-dot board looks like it’s run by some custom microcontrollers, and is hooked up to a joystick for playing ‘snake.’
